M2.4 · 3 km NW of The Geysers, CA

one catch · SS.OAKM1.00.EHZ

M2.4 · 3 km NW of The Geysers, CA

2026-07-27 06:29:25 UTC · 41.2 km (NNW) · depth 3.5 km

magnitude
2.4
distance
41.2 km
depth
3.5 km
envelope peak
20 µV
envelope SNR
13×
P predicted
7.1 s
sustain
10.3 s
low/high band
6.1×
vs NP.1835
1.42× †
M2.4 · 3 km NW of The Geysers, CA
P

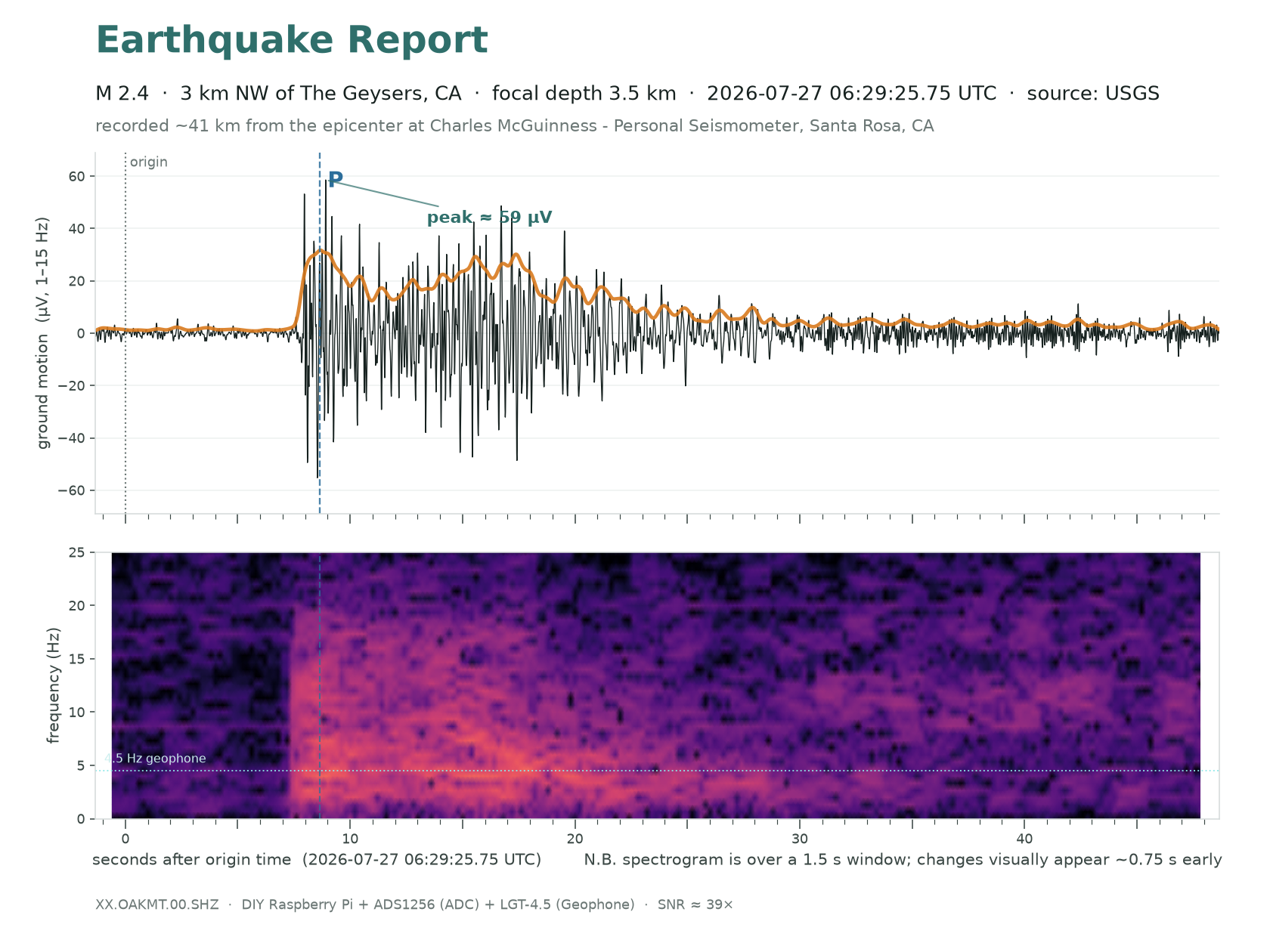

Listen for how the pitch balance changes at the P wave (marked where it was picked), at the S wave (the dashed mark is its predicted arrival) and through the coda that follows. Volume is normalised to this clip, so it only says how much energy there is before, during and after the event relative to its own peak — not how big the earthquake was.

  • The second confirmed event, two days after the first, and the first from The Geysers. Onset at +8.15 s — one of the five points that fixed the station’s P velocity.

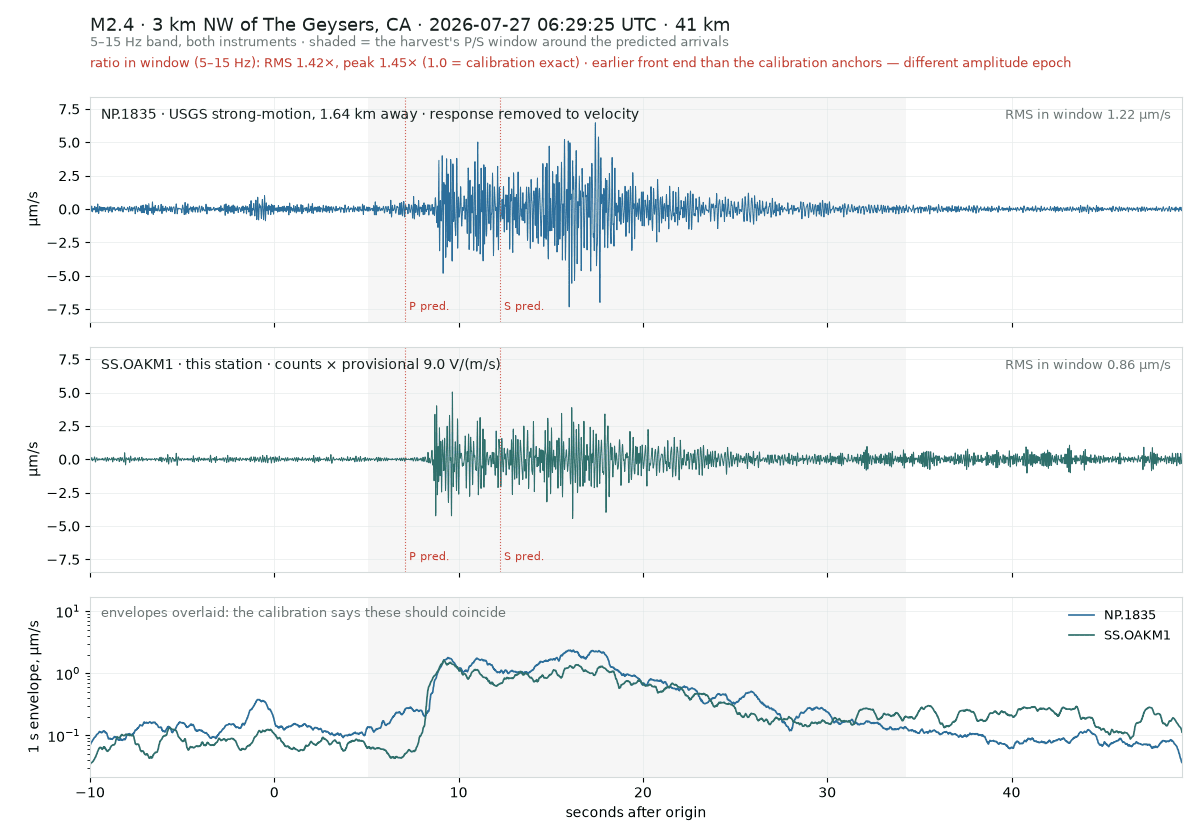

3 km NW of The Geysers, CA against NP.1835

Side by side with USGS NP.1835, 1.64 km away, both in ground velocity. Earlier front end than the calibration anchors, so the ratio is not averaged in.

← all catches

Independent station. Times are UTC. Built by Charles McGuinness.
